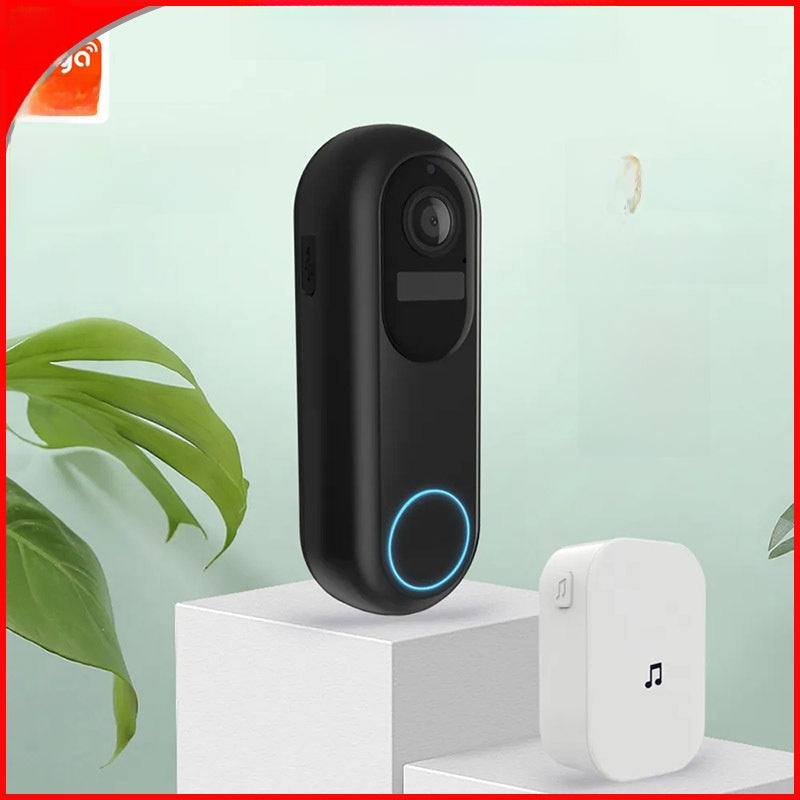

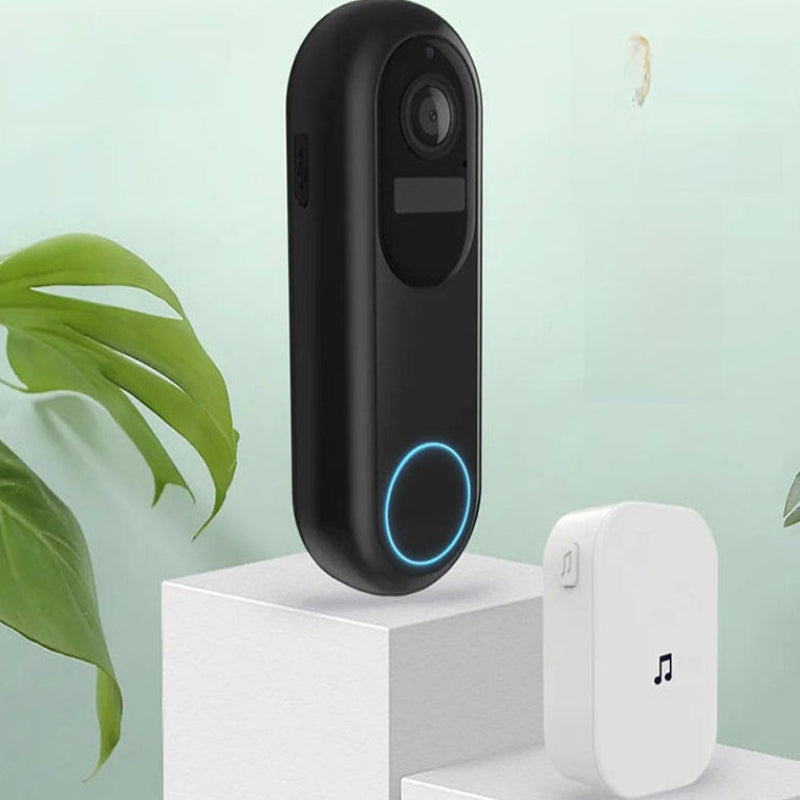

Doodle Smart Visible Doorbell

Overview

5G & Dual-Band WiFi: Supports both 2.4G and 5G WiFi networks for stable connectivity.

1080P HD Video: Features a 1.0MP CMOS sensor with 1080P resolution for clear monitoring.

Two-Way Audio: Enables real-time voice intercom with echo cancellation.

Smart Motion Detection: PIR sensor with adjustable sensitivity (high/medium/low) and 10m detection range.

Night Vision: Equipped with 6 EXIR infrared LEDs (850nm) for clear footage in low-light conditions (0Lux).

Long Battery Life: Dual 5200mAh removable batteries provide ~60 days of standby (10 activations/day).

Cloud & Local Storage: Supports TF card (up to 128GB) and optional cloud recording (paid).

Tuya Smart App: Compatible with Android/iOS for remote access, live view, and OTA updates.

Specifications

Sensor:

Motion Detection: 10m range, 110° angle.

Image Sensor: 1/4" CMOS (F37), 3.6mm focal length, F2.1 aperture.

Video:

Resolution: 1080P at 20fps (H.264 encoding).

Viewing Angle: 135°(D) × 114°(H) × 88°(V).

Audio: Full-duplex speaker (8Ω/1W), G.711a compression.

Connectivity:

WiFi: Dual-band (2.4G/5G), IEEE 802.11 b/g/n/ac, max 40Mbps.

Transmission: Up to 150m line-of-sight.

Battery:

Type: 2×18650 lithium polymer (5200mAh each).

Input: DC 5V/1A (Micro USB).

Operating Conditions: -20°C to 50°C (humidity <95%).

Packing List

video doorbell*1

AC adapter (DC 5V 1A)*1
